Best AI Tools for Software Architecture Design in 2026

Software architecture design has been transformed by artificial intelligence in 2026 — the complex decisions around system design, microservices decomposition, API design, database selection, cloud infrastructure, and technical documentation that previously required senior architect hours can now be accelerated significantly with AI assistance.

For software architects, technical leads, and senior engineers, AI tools in 2026 handle the most time-consuming parts of architecture work: generating architecture diagrams from natural language descriptions, evaluating design tradeoffs, producing Architecture Decision Records (ADRs), identifying potential bottlenecks and single points of failure, and creating comprehensive technical documentation.

This guide covers the best AI tools specifically for software architecture design in 2026 — from diagram generation to system design assistance to cloud architecture optimization.

What AI Does for Software Architecture

System design generation: AI produces complete system architecture diagrams from plain language requirements — microservices boundaries, data flows, API contracts, and infrastructure components.

Architecture evaluation: AI identifies potential bottlenecks, single points of failure, scaling limitations, and security vulnerabilities in proposed architectures.

Technology selection: AI evaluates technology options against specific requirements — comparing databases, message queues, caching layers, and cloud services with honest tradeoff analysis.

Documentation: AI generates Architecture Decision Records (ADRs), technical design documents, API specifications, and runbooks from architecture descriptions.

Code architecture: AI reviews codebase architecture — identifying violations of design patterns, suggesting refactoring opportunities, and evaluating coupling and cohesion.

Diagram generation: AI creates UML, C4, sequence, and architecture diagrams from natural language or code descriptions.

Best AI Tools for Software Architecture Design in 2026

System Design and Architecture AI

1. GitHub Copilot — Best AI for Architecture Code Generation

GitHub Copilot is the most widely used AI coding assistant — and its architecture-specific capabilities extend well beyond individual function generation to system-level design assistance.

Software architecture capabilities:

Architecture scaffolding:

python

# Prompt: Create a microservices architecture for an
# e-commerce platform with separate services for:
# - Product catalog
# - Order management
# - Payment processing
# - User authentication
# - Notification service
# Include service interfaces and communication patterns

# Copilot generates complete service scaffolding:
class ProductCatalogService:
    """
    Responsible for: Product CRUD, inventory tracking,
    search and filtering
    Communicates via: REST API (sync), Kafka (async events)
    Database: PostgreSQL for structured data,
              Elasticsearch for search
    """
    def __init__(self, db: PostgreSQLClient,
                 search: ElasticsearchClient,
                 event_publisher: KafkaProducer):
        self.db = db
        self.search = search
        self.event_publisher = event_publisher

    async def create_product(self, product: ProductDTO) -> Product:
        # Persist to primary database
        product_record = await self.db.insert(product)
        # Index for search
        await self.search.index(product_record)
        # Publish event for other services
        await self.event_publisher.publish(
            'product.created',
            ProductCreatedEvent(product_record.id)
        )
        return product_record

Interface design:
Describe service requirements → Copilot generates REST API interfaces, GraphQL schemas, gRPC proto definitions.

Design pattern implementation:
Repository pattern, CQRS, event sourcing, saga pattern — Copilot implements architectural patterns from brief descriptions.

Pricing: Free (2,000 completions/month). Pro: $10/month. Free for verified students.

Best for: Software architects who work in code — Copilot’s architecture-aware code generation ensures implementation matches architectural intent.

2. ChatGPT / Claude — Best for System Design Consultation

AI assistants are the most versatile software architecture tools — providing system design consultation, architecture evaluation, and technical documentation at any hour.

Software architecture use cases:

Complete system design:

Design a scalable notification system that handles:
- 10 million users
- Push notifications, SMS, email
- 99.9% delivery guarantee
- Real-time and scheduled notifications
- User preference management
- Delivery tracking and analytics

Provide:
- High-level architecture diagram (text/ASCII)
- Component breakdown with responsibilities
- Technology choices with justification
- Database design
- API design
- Scaling strategy
- Failure handling approach

Architecture review:

Review this microservices architecture for an
Indian fintech application:

[paste architecture description]

Identify: – Single points of failure – Potential performance bottlenecks – Security vulnerabilities – Scaling limitations – Missing components – RBI compliance considerations for Indian fintech.

Technology selection:

We're building a real-time chat application
for 5 million concurrent Indian users.
Compare these options for our message broker:
- Apache Kafka
- RabbitMQ
- Redis Streams
- AWS SQS/SNS

Evaluate on: throughput, latency, operational
complexity, cost on AWS Mumbai region,
team learning curve. Recommend with justification.

ADR generation:

Write an Architecture Decision Record (ADR) for:
Decision: Choosing PostgreSQL over MongoDB for
our main application database

Context: B2B SaaS platform, complex relational data,
reporting requirements, team SQL expertise

Include: Status, Context, Decision, Consequences,
Alternatives considered

Free plan: Claude free and ChatGPT free handle complex software architecture questions effectively.

Best for: Architecture consultation, design review, documentation generation — AI assistants provide senior architect-level guidance on demand.

3. AWS Architecture Center with AI — Best for AWS System Design

AWS’s architecture guidance combined with Amazon CodeWhisperer and Amazon Q provides the most comprehensive AI-powered AWS architecture assistance.

Software architecture capabilities:

Amazon Q Developer:
Ask architecture questions directly in the AWS console or IDE:

• “What’s the best architecture for a serverless API handling 1M requests/day on AWS?”
• “Design a multi-region active-active architecture for our RDS database”
• “Suggest cost optimization for this AWS architecture”

Well-Architected Tool with AI:
Input your architecture → AWS AI evaluates against 6 pillars:

• Operational Excellence
• Security
• Reliability
• Performance Efficiency
• Cost Optimization
• Sustainability

AI generates prioritized improvement recommendations with specific implementation guidance.

Architecture patterns library:
AI-searchable library of AWS reference architectures — find patterns for specific use cases (event-driven, microservices, data lake, ML pipeline) with implementation details.

Cost optimization AI:
AWS Compute Optimizer uses machine learning to analyze resource utilization → recommends right-sized instances → estimated monthly savings shown.

Pricing: Amazon Q Developer free tier available. Well-Architected Tool: free.

Best for: Teams building on AWS — Amazon Q’s AWS-native context delivers architecture recommendations with specific service configurations and estimated costs.

Architecture Diagram Generation

4. Eraser.io — Best AI Architecture Diagram Tool

Eraser.io is the most capable AI-powered technical diagram tool — generating architecture diagrams, sequence diagrams, and ERDs from natural language or code descriptions.

Software architecture diagram capabilities:

Natural language to diagram:

Create a microservices architecture diagram for
an Indian e-commerce platform with:
- API Gateway (Kong)
- User Service
- Product Service
- Order Service
- Payment Service (Razorpay integration)
- Notification Service
- Redis cache layer
- PostgreSQL databases per service
- Kafka message broker
- Kubernetes orchestration

Eraser generates a complete, properly connected architecture diagram with all components visually represented.

Sequence diagrams:

Show the sequence for processing a payment:
1. User initiates checkout
2. Order Service validates cart
3. Payment Service calls Razorpay API
4. Payment confirmation received
5. Order Service updates status
6. Notification Service sends confirmation
7. Inventory Service updates stock

Code to diagram:
Paste existing microservice code → Eraser AI extracts architecture → generates diagram showing services, dependencies, and data flows.

C4 model diagrams:
Generate C4 context, container, component, and code diagrams from architecture descriptions — industry standard for software architecture documentation.

Collaboration:
Real-time collaborative editing — the architecture team works on the same diagram simultaneously.

Pricing: Free (limited). Pro from $8/month.

Best for: Software architects who need professional architecture diagrams quickly — Eraser’s natural language input dramatically reduces diagram creation time.

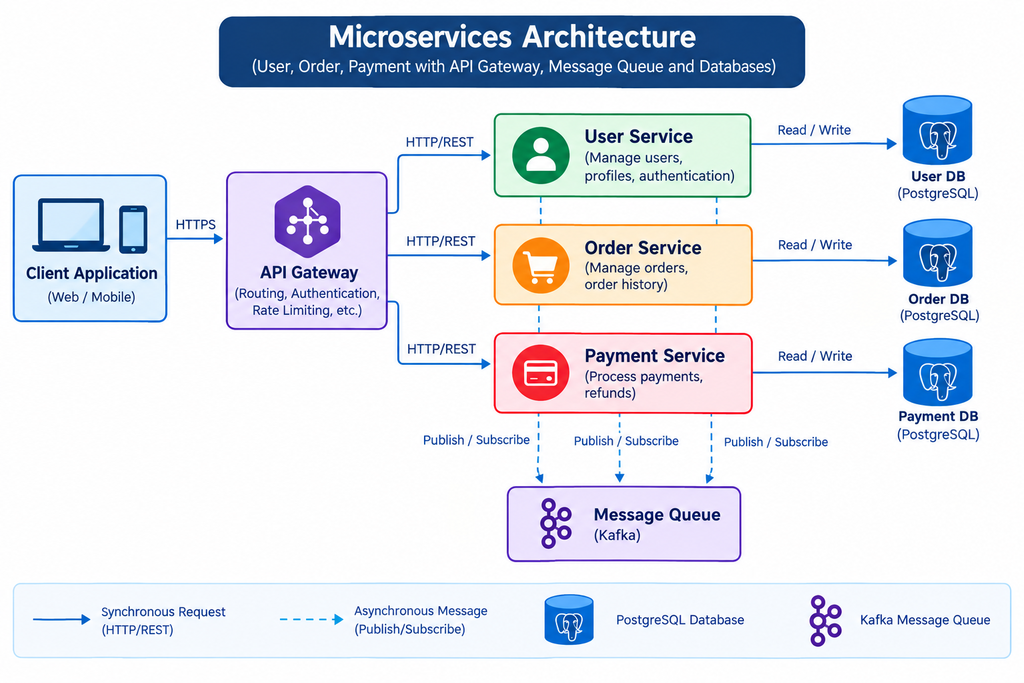

5. Mermaid with AI — Best Free Architecture Diagramming

Mermaid is an open-source diagramming tool that generates diagrams from text syntax — and AI assistants generate Mermaid code from architecture descriptions, creating a powerful free combination.

Software architecture capabilities:

AI-generated Mermaid architecture diagrams:

Ask ChatGPT/Claude:

Generate a Mermaid diagram showing microservices
architecture with API gateway, three services
(user, order, payment), message queue, and databases

Renders immediately in:

• GitHub/GitLab (native support)
• Notion
• Confluence
• Markdown editors
• mermaid. live (free online editor)

Sequence diagrams, flowcharts, ERDs:
Mermaid supports all common software architecture diagram types — AI generates the syntax, Mermaid renders the diagram.

Completely free: Mermaid is open source. ChatGPT/Claude free generates the Mermaid syntax. Zero cost for comprehensive architecture diagramming.

Best for: Engineers who want free, version-controllable architecture diagrams — Mermaid syntax lives in code repositories alongside implementation.

6. Structurizr with AI — Best for C4 Model Architecture

Structurizr is the most sophisticated tool for C4 model software architecture documentation — and AI assistance makes creating C4 diagrams significantly faster.

C4 model architecture capabilities:

AI-generated Structurizr DSL:
Ask Claude/ChatGPT to generate Structurizr DSL code for C4 diagrams:

Generate Structurizr DSL for a C4 model of
an Indian banking application with:
- Mobile app (iOS/Android)
- Web application
- API Gateway
- Core banking system
- Payment service
- Notification service
- External: NPCI (UPI), RBI reporting system
- Databases: PostgreSQL, Redis

C4 levels generated:

• Level 1 (System Context) — external users and systems
• Level 2 (Container) — technical building blocks
• Level 3 (Component) — inside each container
• Level 4 (Code) — implementation details

Structurizr Lite: Free self-hosted option for architecture documentation.

Best for: Architecture teams committed to C4 model documentation — Structurizr with AI provides the most comprehensive C4 tooling available.

Cloud Architecture AI

7. Pulumi AI — Best for Infrastructure as Code Architecture

Pulumi AI generates complete infrastructure as code from natural language architecture descriptions — the bridge between architecture design and implementation.

Software architecture capabilities:

Architecture to IaC:

Create Pulumi TypeScript code for:
- VPC with public and private subnets
- EKS cluster (3 node groups)
- RDS PostgreSQL in private subnet
- ElastiCache Redis cluster
- Application Load Balancer
- CloudFront distribution
- S3 bucket for static assets
- All security groups and IAM roles

Pulumi AI generates complete, working infrastructure code that implements the described architecture.

Multi-cloud support:
AWS, Azure, GCP, Kubernetes — generate IaC for any cloud provider from the same architecture description.

Architecture drift detection:
AI identifies differences between documented architecture and actual deployed infrastructure — catches configuration drift.

Pricing: Free tier available. Teams from $50/month.

Best for: Cloud architects who want architecture decisions directly translatable to infrastructure code — Pulumi AI eliminates the gap between design and implementation.

8. Terraform with AI (Copilot/Cursor) — Best for AWS/Azure/GCP IaC

Terraform remains the most widely used IaC tool — and GitHub Copilot or Cursor AI makes writing Terraform for complex architectures significantly faster.

Architecture to Terraform:

hcl

# Prompt: Create Terraform for multi-AZ EKS cluster
# with node groups for different workloads

# Copilot/Cursor generates:
module "eks" {
  source  = "terraform-aws-modules/eks/aws"
  version = "~> 20.0"

  cluster_name    = var.cluster_name
  cluster_version = "1.29"

  vpc_id     = module.vpc.vpc_id
  subnet_ids = module.vpc.private_subnets

  eks_managed_node_groups = {
    general = {
      min_size       = 2
      max_size       = 10
      desired_size   = 3
      instance_types = ["t3.medium"]
    }
    compute = {
      min_size       = 0
      max_size       = 20
      desired_size   = 0
      instance_types = ["c5.xlarge"]
      taints = [{
        key    = "workload"
        value  = "compute"
        effect = "NO_SCHEDULE"
      }]
    }
  }
}

Architecture review via AI:
Paste existing Terraform → ask AI to:

• Identify security misconfigurations
• Suggest cost optimization
• Check compliance with AWS Well-Architected Framework
• Review IAM policies for least privilege

Best for: Infrastructure architects who work with Terraform — Copilot’s Terraform generation dramatically reduces time writing boilerplate infrastructure code.

API Design AI

9. Swagger/OpenAPI with AI — Best for API Architecture

AI-assisted OpenAPI specification generation makes API-first architecture design significantly faster — describing APIs in natural language and generating complete OpenAPI specifications.

API architecture capabilities:

Natural language to OpenAPI:

Generate OpenAPI 3.0 specification for a
product catalog API:
- GET /products (list with pagination, filtering by
  category, price range, search)
- POST /products (create product)
- GET /products/{id} (get single product)
- PUT /products/{id} (update product)
- DELETE /products/{id} (delete product)
- GET /categories (list categories)

Include: request/response schemas, error responses,
authentication (JWT), pagination headers,
rate limiting headers

ChatGPT/Claude generates a complete OpenAPI YAML specification ready for Swagger UI.

API design review:
Paste existing API specification → AI evaluates:

• REST design principles compliance
• Naming consistency
• Versioning strategy
• Error handling completeness
• Security considerations
• Breaking change identification

Mock server generation:
API specification → AI generates mock server code (Node.js, Python) for frontend development without backend dependency.

Best for: Architecture teams practicing API-first design — AI-generated OpenAPI specifications accelerate API contract definition before implementation begins.

10. Postman AI — Best for API Testing Architecture

Postman’s AI features help design and validate API architectures through automated testing and contract verification.

API architecture capabilities:

Postman AI (Postbot):

• Generate API tests from endpoint descriptions
• Create test suites from OpenAPI specifications
• Suggest edge cases and error scenarios
• Generate documentation from collections

Contract testing:
AI validates that API implementations match OpenAPI specifications — catches breaking changes before deployment.

Architecture simulation:
Run collections against mock servers to validate complete API flow architecture before implementation.

Pricing: Free tier (3 users, basic features). Pro from $14/user/month.

Best for: API-first architecture teams — Postman AI validates API design through testing rather than just documentation.

Database Architecture AI

11. Atlas (MongoDB) / Neon AI — Best for Database Architecture

AI-powered database architecture tools help design schemas, optimize queries, and plan database infrastructure.

Database architecture capabilities:

Schema design AI:
Describe data requirements → AI generates optimal schema:

Design MongoDB schema for a multi-tenant SaaS
application with:
- Organizations with multiple users
- Projects belonging to organizations
- Tasks within projects
- Activity logs
- File attachments
- Subscription and billing data

Optimize for: read-heavy workload,
tenant isolation, horizontal scaling

Query optimization:
AI analyzes query patterns → suggests indexes, schema denormalization, or query rewrites.

Sharding strategy:
For large-scale databases — AI recommends sharding key selection based on access patterns.

Best for: Backend architects designing database layers — AI schema design reduces time spent on database architecture decisions.

Software Architecture Documentation AI

12. Confluence with AI / Notion AI — Best for Architecture Documentation

Architecture documentation is critical but time-consuming — AI tools in Confluence and Notion dramatically accelerate technical writing.

Architecture documentation capabilities:

Confluence AI (Atlassian Intelligence):

• Generate architecture overview from bullet points
• Summarize architecture discussions into decisions
• Create technical design templates
• Auto-generate table of contents for architecture docs

Notion AI:

• Architecture Decision Record (ADR) generation
• Runbook creation from architecture descriptions
• Technical spec generation
• Meeting notes to architecture decisions

Architecture document templates with AI:

System Design Document:

Generate a system design document structure for:

[paste your architecture description]

Include sections: – Executive Summary – System Overview and Goals – Architecture Decisions – Component Design – Data Architecture – API Design – Security Architecture – Scalability and Performance – Monitoring and Observability – Deployment Architecture – Risk Assessment.

Best for: Architecture teams who need comprehensive documentation alongside design — AI documentation tools ensure architectural decisions are properly recorded.

AI Architecture Tools by Software Engineering Role

Software Architect / Principal Engineer

Essential stack:

• ChatGPT/Claude free — system design consultation
• Eraser.io ($8/month) — architecture diagrams
• GitHub Copilot ($10/month) — architecture code
• AWS Well-Architected Tool (free) — architecture review

Monthly cost: ~$18/month

Tech Lead / Senior Engineer

Practical stack:

• ChatGPT/Claude free — design decisions and ADRs
• Mermaid + AI (free) — architecture diagrams in code
• GitHub Copilot ($10/month) — implementation
• Terraform + Copilot — infrastructure code

Monthly cost: ~$10/month

Platform/Infrastructure Engineer

Infrastructure stack:

• Pulumi AI or Terraform + Copilot — IaC generation
• Amazon Q Developer (free tier) — AWS architecture
• ChatGPT/Claude free — architecture consultation
• Datadog AI — infrastructure monitoring

Free Software Architecture AI Stack

For engineers with minimal budget:

Monthly cost: ₹0

This free stack covers complete software architecture design workflow — system design, diagramming, API design, IaC, and documentation.

Frequently Asked Questions

Which AI tool is best for software architecture design in 2026?
ChatGPT or Claude free for system design consultation and documentation — most versatile for architecture decisions. Eraser.io for professional architecture diagrams. GitHub Copilot for architecture code generation. AWS Well-Architected Tool for cloud architecture review. Together, these tools cover the complete software architecture workflow.

Can AI design a complete software architecture?
AI generates strong starting-point architectures from requirements — covering component design, technology selection, and infrastructure planning. Human architects validate AI suggestions against specific business constraints, team capabilities, regulatory requirements, and organizational context. AI accelerates architecture design significantly — final decisions require human judgment.

Which free AI tool is best for architecture diagrams?
Mermaid combined with ChatGPT/Claude free is the most powerful free architecture diagramming solution — AI generates Mermaid syntax from descriptions, and Mermaid renders professional diagrams. Completely free, version-controllable, and integrates with GitHub, Notion, and Confluence natively.

How does AI help with microservices architecture design?
AI evaluates microservices decomposition strategies, identifies service boundary issues (distributed monolith patterns, chatty services), suggests communication patterns (sync REST vs async messaging), designs API contracts between services, and generates implementation scaffolding. ChatGPT and Claude are particularly strong for microservices design consultation.

Which AI tool is best for AWS architecture design?
Amazon Q Developer (free tier) provides the most AWS-native architecture assistance — integrated with the AWS console, access to AWS service knowledge, and aligned with the Well-Architected Framework. GitHub Copilot with Terraform generates AWS infrastructure code from architecture descriptions.

Conclusion

AI has made software architecture design in 2026 significantly faster and more accessible — from system design consultation to diagram generation to infrastructure code, the tools available address every stage of the architecture workflow.

For system design consultation: ChatGPT or Claude free — complete system architecture design, technology evaluation, ADR generation, and design review from natural language descriptions.

For architecture diagrams: Eraser.io ($8/month) for professional team diagrams. Mermaid + AI free for version-controlled diagrams in code repositories.

For architecture code: GitHub Copilot — design pattern implementation, service scaffolding, and API interface generation within existing development workflow.

For cloud architecture: Amazon Q Developer (AWS) or Azure AI features — cloud-native architecture guidance with specific service recommendations and cost estimates.

For IaC generation: Pulumi AI or Terraform + Copilot — architecture decisions directly translated to deployable infrastructure code.

Start with ChatGPT or Claude free for immediate architecture assistance — describe your system requirements, get complete architecture recommendations, evaluate with your team, and refine. Add Eraser.io for professional diagramming and GitHub Copilot for implementation acceleration. Build the stack progressively as architecture complexity and team size grow.
